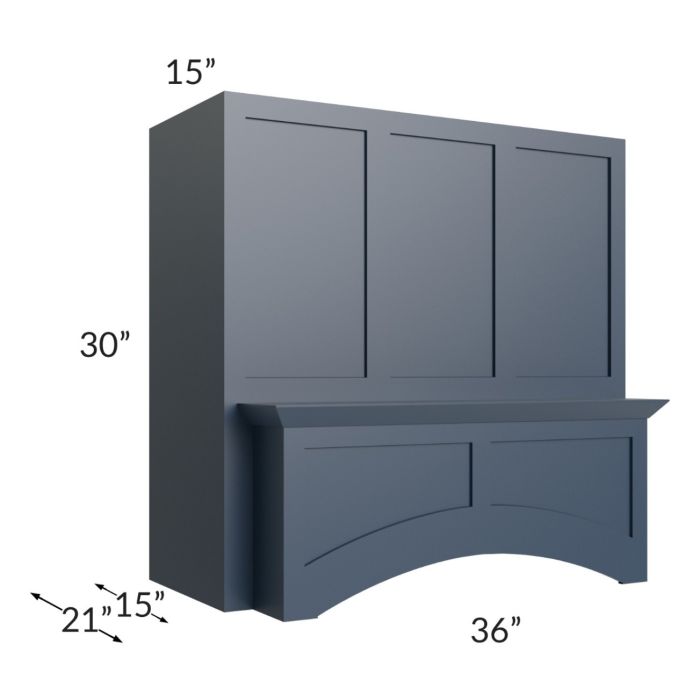

Width 36" | Height 30" | Depth 21"

Arched wood hood with an overall depth of 21", the depth of the main part of the hood (which goes against the wall) is 15". The top panel will lift up and the sides will be flush. If crown is being installed, it would be installed above the cabinet, not on the face frame. A full interior stainless steel hood liner will also be installed (liner can be removed on site, if needed, however a hood liner is strongly recommended to prevent the wood hood from getting burned and is required by code in many places. The interior hood liner dimensions are as follows:

• Rear width: 34-1/2”
• Front width: 29-7/8”
• Depth of 34-1/2” section: 13-3/4”
• Depth of 29-7/8” section: 4-1/2”
• Max fan size: 34-1/2” x 13-3/4”
• Note that a blower is not included and must be purchased separately
