Optional liner/blower and ductless conversion kits are also available. The Trade-Wind liner/blower has a commercial grade stainless steel and galvanized steel construction, 2 LEDs (48 will have 3 LEDs), electronic touch control, remote control operation and dishwasher-safe baffle filters.*Please note that the range hood ducting and metal elbows are not included with the ductless conversion kits and must be purchased separately.*
The Broan liners are stainless steel for easy cleaning. The 300 Max Blower has 2 speeds,heat resistant LED lighting, and uses dishwasher-safe filters. The 450 Max Blower features heat sensing technology, heat resistant LED lighting,and uses dishwasher-safe filters. Broan ductless conversion kits include a charcoal filter, soffit grille, 90-degree stack boot, 7" round duct and a 6-7" round transition.*
Please select a hood size to see specific descriptions and specs for that size.
Specs for 30x36
Width 31.5" |Height 36" |Depth 20.25"

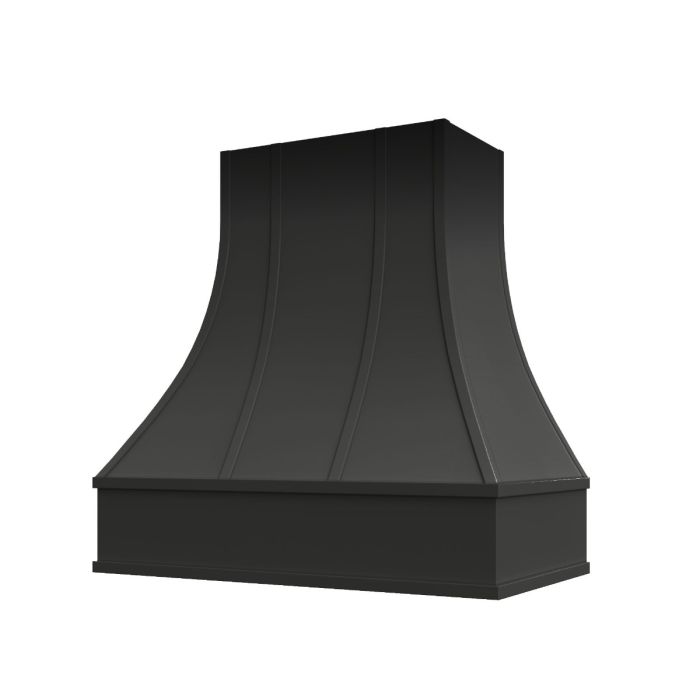

Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 30" but at the widest point with the molding, the total width is 31-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 15" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 30x48
Width 31.5" |Height 48" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 30" but at the widest point with the molding, the total width is 31-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 15" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 36x36
Width 37.5" |Height 36" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 36" but at the widest point with the molding, the total width is 37-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 21" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 36x48
Width 37.5" |Height 48" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 36" but at the widest point with the molding, the total width is 37-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 21" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 42x36
Width 43.5" |Height 36" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 42" but at the widest point with the molding, the total width is 43-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 27" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 42x48
Width 43.5" |Height 48" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 42" but at the widest point with the molding, the total width is 43-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 27" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 48x36
Width 49.5" |Height 36" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 48" but at the widest point with the molding, the total width is 49-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 33" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 48x48
Width 49.5" |Height 48" |Depth 20.25"
Strapped, curved hood with block molding. Features a plywood and Maple construction. The hood base front panel is 48" but at the widest point with the molding, the total width is 49-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 33" wide and 12" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
